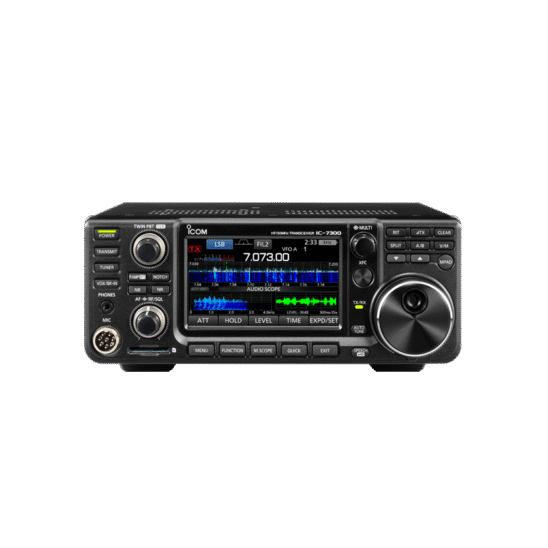

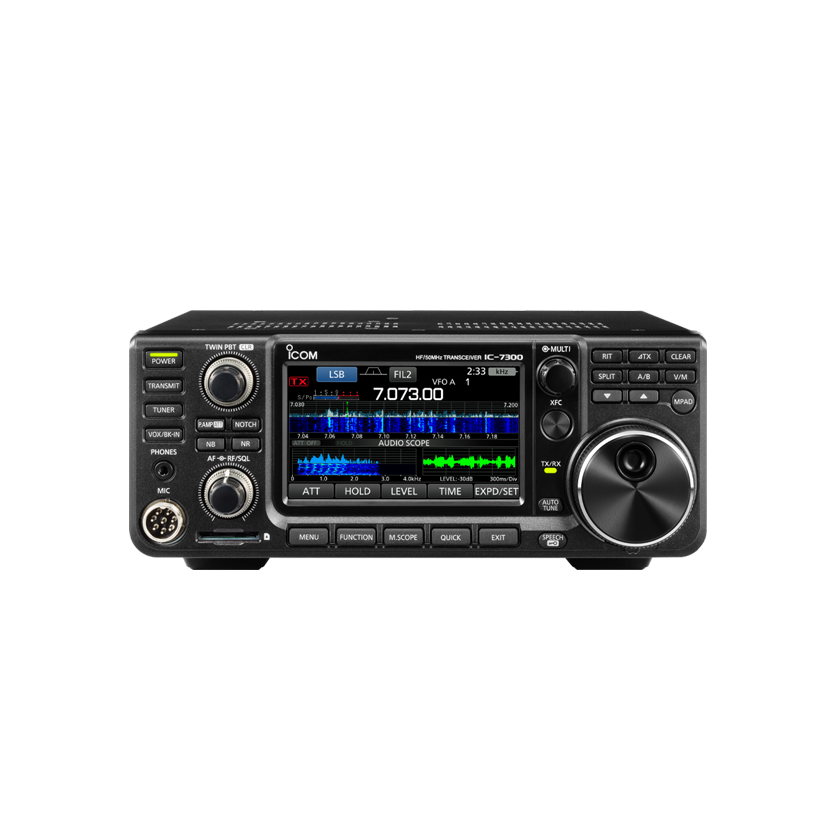

IC-7300

Simple and tough DSP based HF+6m base transceiver

• Output power 100W (25W AM) RX
• Frequency coverage: RX 0.030-74.800, TX 160-6m
• 101 memory channels
• Built-in automatic antenna tuner
• CW mode features full breck-in, CW reverse and CW auto tuning
• 15 Discrete RF band-pass filters with high Q factor components to reduce performance reducing loss.
• Large touch-screen high visibility color TFT LCD
• Class leading RMDR (100DB) and phase noise characteristics mean reduced noise components in receive and transmit performance
• New “IP+” function improves receiver third-order intercept point performance. On weak signals adjacent to strong signals, the A/D converter is optimized against discortion improving receiver performance.
• SD Memory Card for saving data, One touch FT8 mode
• Remote control operating using option RS-BA1 software
